Adding

1. In the left hand menu click on RFID Items.

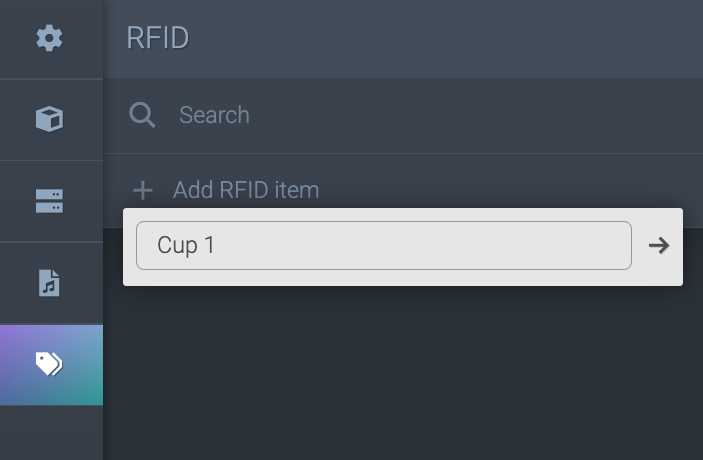

2. Click 'Add RFID item'.
3. Use the text field to type the name of your RFID item (e.g. if you had a prop made of cups and saucers, you would call is something like 'Red Cup', etc).

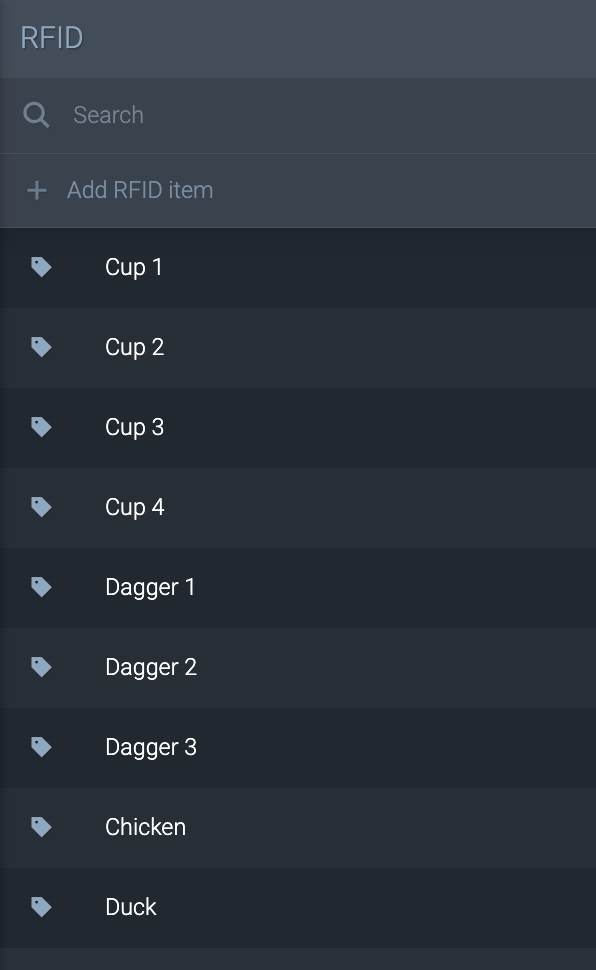

   • NB. this is where all RFID items for your show will be. E.g. If you've got 5 interactions that all use RFID items, you will create all of your items here. These will be all of the available items that you can assign to physical RFID tags.
4. These items are now available to be used as part of WHEN: Values match in Behaviours to trigger actions.
5. They are immediately available in channels as virtual items to use in **testing.**

Programming

1. Connect an RFID Master to the network and **Pair.**
2. Patch your RFID Channels to the reader ports, if you haven't done this already.
3. Place the tag you which to program on any available reader (if you need help getting the distance correct to get a read, see Connecting RFID Readers to the RFID Master).

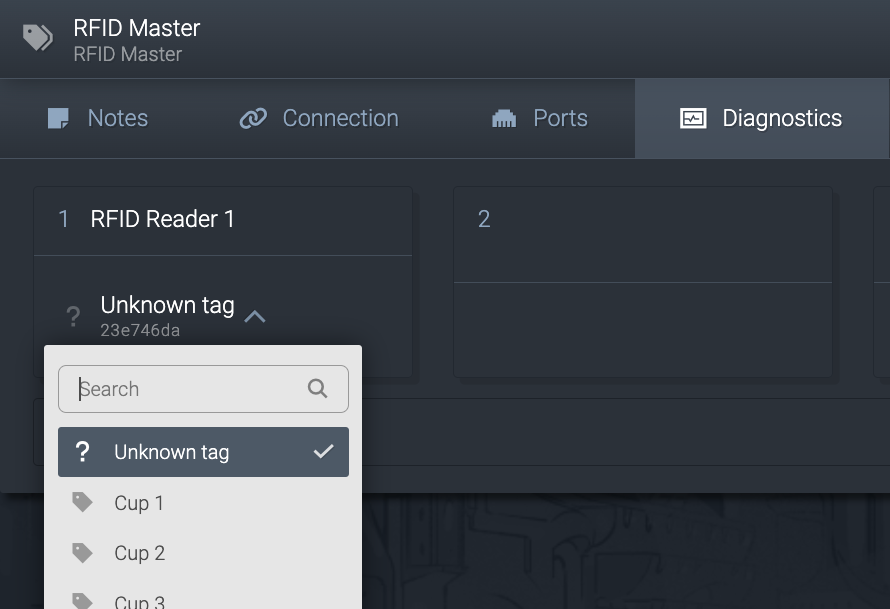

4. In Connect → Select RFID Master → Diagnostics, here you will see an 'Unknown Tag' on the reader it's currently on.
5. To the right, click the arrow to open a dropdown menu of all your RFID items and click the one you want.
6. This will assign this item to the tag and this is how it will appear on any reader in the show.
