he DC Master can connect to digital outputs (e.g. magnetic locks, lights, motors) see: [Using a Digital Output channel] and Analog outputs (e.g. dimmable lights) see: [Using an Analog Output channel]

We recommend you watch the DC Master Tutorial.

To connect anything to a DC Master, you will need:

• Flathead screwdriver
• Wire strippers (if required)

Digital Outputs / Analog Outputs

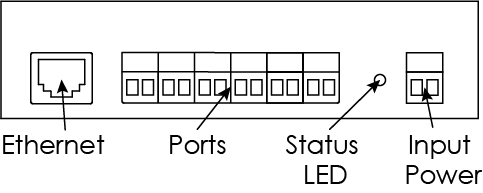

To connect any device to the DC Master, screw the stripped wires into each terminal block

• the wire order must go negative then positive
• The pairs must always go into adjacent terminal screw holes in pairs starting from the left
• The terminal blocks are removable

To patch this channel to a digital input in COGS software see Patching channels to the DC Master
