To see the Diagnostics for the DC Master:

• Devices → Choose a DC Master → Diagnostics (heartbeat icon)

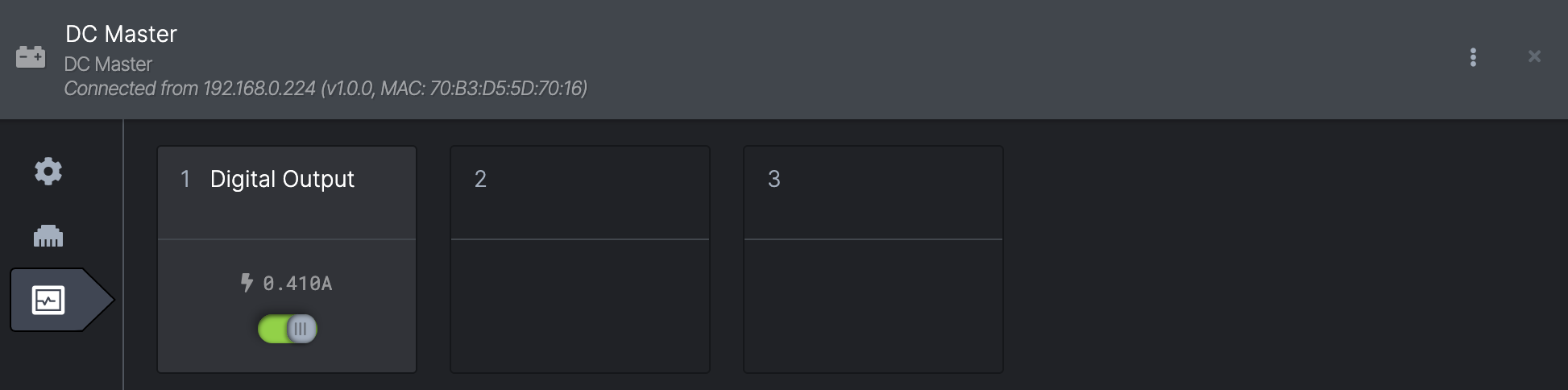

You will see a visual representation of any channels that are currently patched to each of the 6 ports (see: Patching channels to the DC Master)

• Ports are numbered 1-6, and show the names of each output
• Any empty channels shown as blank
• The toggle shows the current output status, if they are patched to real hardware or not. RED is off. GREEN is on.
• Current monitoring - when a real load is present on the channel, you can monitor the current draw in realtime
• You can change the status of the output by clicking the toggle
