To see the Diagnostics for the Motor Master:

• Devices-->Choose a Motor Master-->Diagnostics (heartbeat icon)

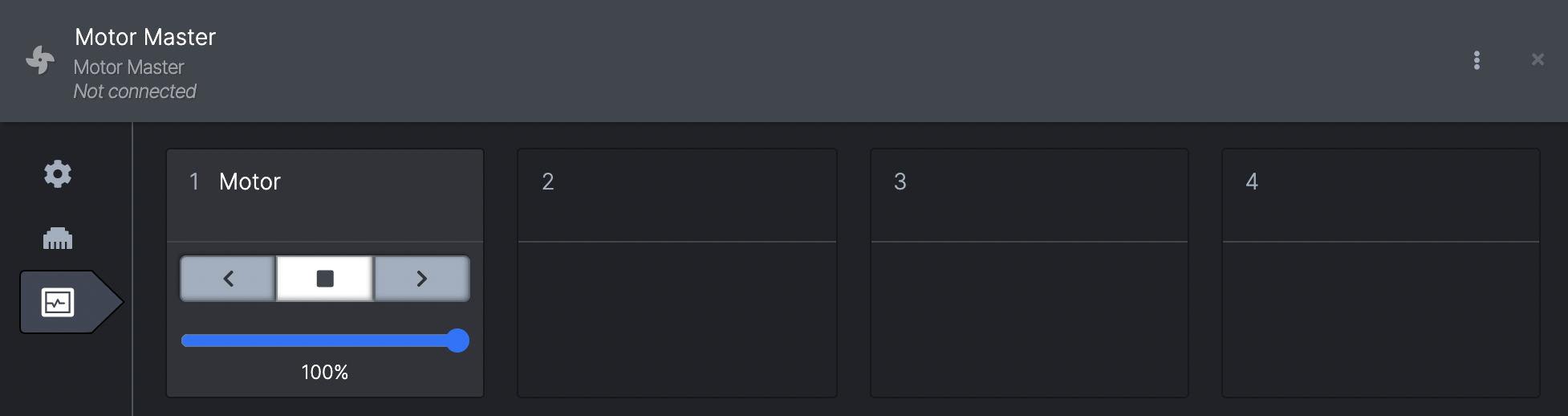

You will see a visual representation of any channels that are currently patched to each of the 6 ports (see: Patching channels to the Motor Master )

• Ports are numbered 1-4, and show the names of each output
• Any empty channels shown as blank
• The forward, stop, back arrows show the current output status, if they are patched to real hardware or not.
• The slider shows the current speed of the motor between 0-100%
• You can change the live status of the motor by clicking the controls or the sliding the slider
