In order to use your sensor channels with real hardware, you must patch your channels to a Sensor Master.

First you must add a Sensor Master to your devices (see: Adding boxes)

There are two ways you can patch channels:

Channel View

• In Setup → Channels, select the sensor channel you want to patch

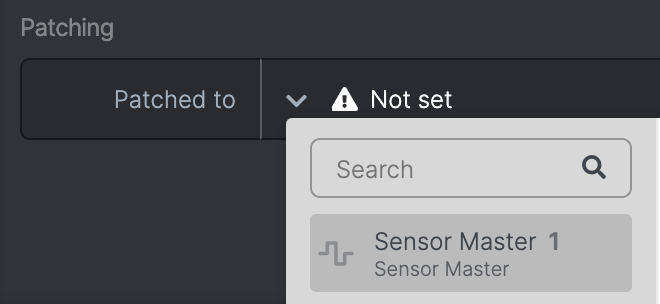

• At the bottom you will see Patching
• Select the dropdown to choose from channels of any Sensor Masters you have added
• You can choose empty channels or overwrite filled ones
• You can search for channel names using the search bar
• Once patched you can unpatch from here

Ports View

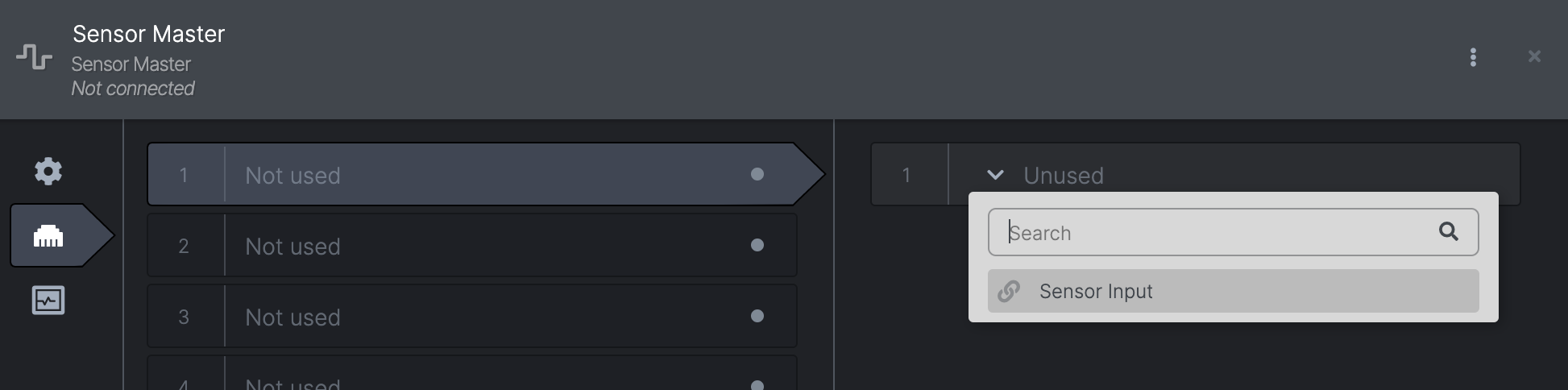

• Devices → Choose a Sensor Master-->Ports (ethernet icon)
• You will see a list of the 12 channel slots
  • The dot on the right show if anything is patched to the slot. WHITE for patched. GREY for empty
• Click on a slot to see the channel associated with it
• Click on channel to see a dropdown of all suitable sensor channels that can be patched
• Click one of these channels in the dropdown to patch it to that channel on the port
  • you can re-patch channels that are already patched elsewhere (it will tell you what port it is already patched to)
• You can search for channel names using the search bar
